Item | Parameters | Item | Parameters |
Washing heads | 14 | Vacuum pump | 0. 20m3/h |
Filling heads | 12 | Power | main motor: 1.5KW hopper motor: 0 .18KW vacuum pump motor:1.1KW chain motor: 0.75KW |
Capping heads | 4 | Dimensions | Accoring to the machine |
Capacity | 1500-2000 bph | N.W. | 2500kg |
Bottle type | height:150~ 300mm bottle neck:50~85mm bottle diameter: 50-75mm | Working voltage AC | It can be customized by the customers'electrical conditions. |
Air consumption | 0.15m3/min(0.4~0.6Mpa) | Control voltage DC | It can be customized by the customers'electrical conditions. |
CO2consumption | 1.6kg/l000L | Frequency converter | SIEMEMS |
Water consumption | 0. 8m3/h | PLC | SIEMEMS |
Touch screen | PLC | Pneumatic element | SMC |

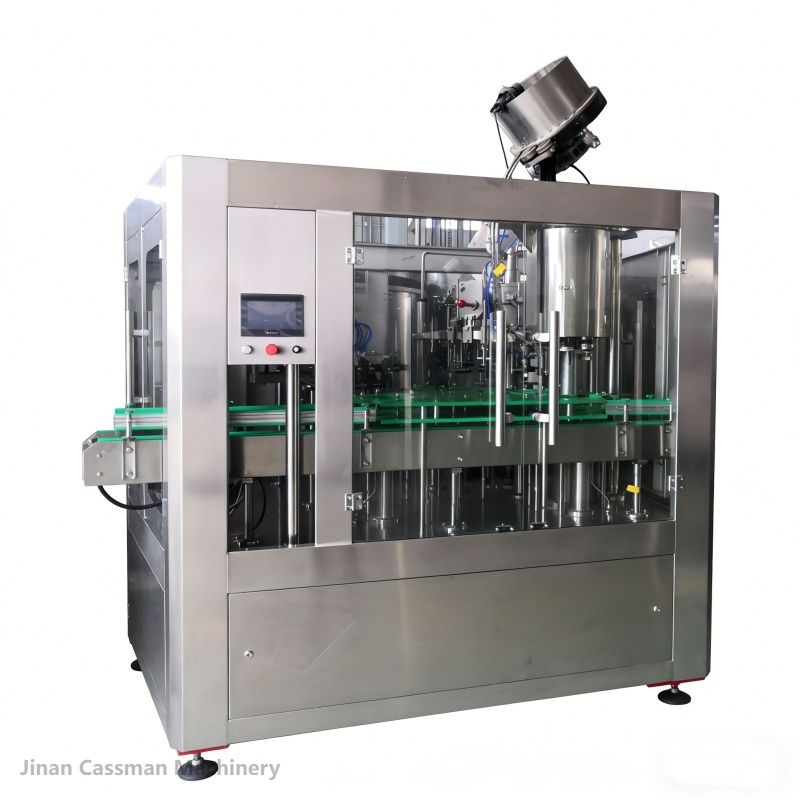

This automatic bottle beer filler is developed on the basis of digesting and absorbing advanced technology introducing from abroad and is with international advanced level. It is mainly used for filling carbonated drink, like beer, soda drink, gas wine, coca cola in glass bottle. The filling way is balanced pressure. It adopts the high quality of stainless steel 304 material, meets the requirements of food grade.
It is advanced in construction, steadily in performance, safe in operation, easy in maintenance high in production efficiency, and the speed can be regulated infinitively.
The filling machine is the ideal choice for drink factories of small and middle size.
It is made with vacuum pumping function to pumping the vacuum from the full filled bottle, to guarantee the flavor and warranty of beer.
The automatic bottle crown capper is designed for sealing glass bottle with crown cap, press cap. It is designed with single sealing head. It has the automatic function of cap sorter, cap loader and cap pressing sealing. The machine is full automatic. It adopts the high quality of stainless steel 304 material, meets the requirements of food grade. It is perfect in performance, reliable in operation and easy in maintenance. It could be used single or connected with the production line. So it is widely used in automatic packing lines for various kinds of milk, juice, wine, drink, pharmacy chemicals, reagent, pesticide and so on. It is one of the most ideal automatic sealing equipment.
Working process:
After checking well the machine, pour the bottle caps into the cap sorter, open the switch, the machine will start, and the cap sorter will work for sorting the caps in normal order to the cap loader, through the vibrations function, the caps will fall off in the cap loader.
When bottles coming through the chain conveyor to the bottle capping machine, the electromagnetic induction sensor inducts the bottle, it will indicate the cap loader to fall off the cap to the bottle, through the cam and sealing wheel, sealing head will fall down to press the bottle cap, one can will be finished and coming out through the chain conveyor.
Main components:
Machine transmission system: motor, main wheel, worm fear, limited cam
Cap capping system: Cap sorter and loader, sealing wheel, cap pressing head, compression springs.
Machine frame, electric control system, switch, conveyor system
Speed control system: Electromagnetic speed regulation system.
Item | Parameters | Item | Parameters |
Washing heads | 14 | Vacuum pump | 0. 20m3/h |
Filling heads | 12 | Power | main motor: 1.5KW hopper motor: 0 .18KW vacuum pump motor:1.1KW chain motor: 0.75KW |
Capping heads | 4 | Dimensions | Accoring to the machine |
Capacity | 1500-2000 bph | N.W. | 2500kg |
Bottle type | height:150~ 300mm bottle neck:50~85mm bottle diameter: 50-75mm | Working voltage AC | It can be customized by the customers'electrical conditions. |
Air consumption | 0.15m3/min(0.4~0.6Mpa) | Control voltage DC | It can be customized by the customers'electrical conditions. |
CO2consumption | 1.6kg/l000L | Frequency converter | SIEMEMS |
Water consumption | 0. 8m3/h | PLC | SIEMEMS |
Touch screen | PLC | Pneumatic element | SMC |
This automatic bottle beer filler is developed on the basis of digesting and absorbing advanced technology introducing from abroad and is with international advanced level. It is mainly used for filling carbonated drink, like beer, soda drink, gas wine, coca cola in glass bottle. The filling way is balanced pressure. It adopts the high quality of stainless steel 304 material, meets the requirements of food grade.
It is advanced in construction, steadily in performance, safe in operation, easy in maintenance high in production efficiency, and the speed can be regulated infinitively.
The filling machine is the ideal choice for drink factories of small and middle size.
It is made with vacuum pumping function to pumping the vacuum from the full filled bottle, to guarantee the flavor and warranty of beer.
The automatic bottle crown capper is designed for sealing glass bottle with crown cap, press cap. It is designed with single sealing head. It has the automatic function of cap sorter, cap loader and cap pressing sealing. The machine is full automatic. It adopts the high quality of stainless steel 304 material, meets the requirements of food grade. It is perfect in performance, reliable in operation and easy in maintenance. It could be used single or connected with the production line. So it is widely used in automatic packing lines for various kinds of milk, juice, wine, drink, pharmacy chemicals, reagent, pesticide and so on. It is one of the most ideal automatic sealing equipment.
Working process:
After checking well the machine, pour the bottle caps into the cap sorter, open the switch, the machine will start, and the cap sorter will work for sorting the caps in normal order to the cap loader, through the vibrations function, the caps will fall off in the cap loader.
When bottles coming through the chain conveyor to the bottle capping machine, the electromagnetic induction sensor inducts the bottle, it will indicate the cap loader to fall off the cap to the bottle, through the cam and sealing wheel, sealing head will fall down to press the bottle cap, one can will be finished and coming out through the chain conveyor.
Main components:
Machine transmission system: motor, main wheel, worm fear, limited cam
Cap capping system: Cap sorter and loader, sealing wheel, cap pressing head, compression springs.
Machine frame, electric control system, switch, conveyor system
Speed control system: Electromagnetic speed regulation system.
