Main Function and Feature
1. Automatic control by PLC, all parameters can be adjusted.
2. Filling and capping process can be finished in this machine at one time.
3. With CO2 pressurization and could add vacuum.
4. Adopt isobar filling method, performance stable and reliable, beer loss minimum.
5. With pressure compensator, to guarantee a stable filling process.
6. Could product the glass bottle or Stainless Steel bottle manual filling and capping AIO machine.
Working Process
Fix the bottles (air cylinders go down) -- CO2 purge -- CO2 isobaric -- filling -- pressure stabilization -- pressure release -- stop (air cylinder go up) -- move the bottles to the capping stations -- capping -- take the bottle

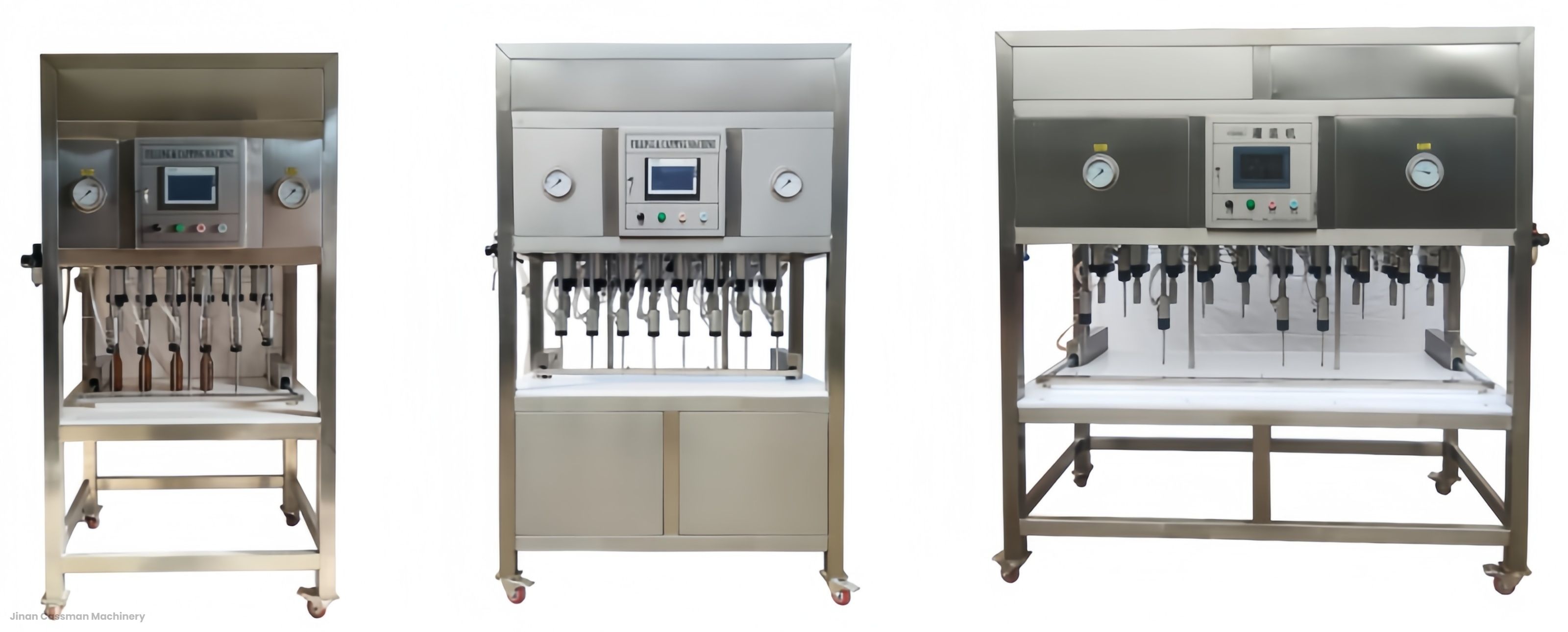

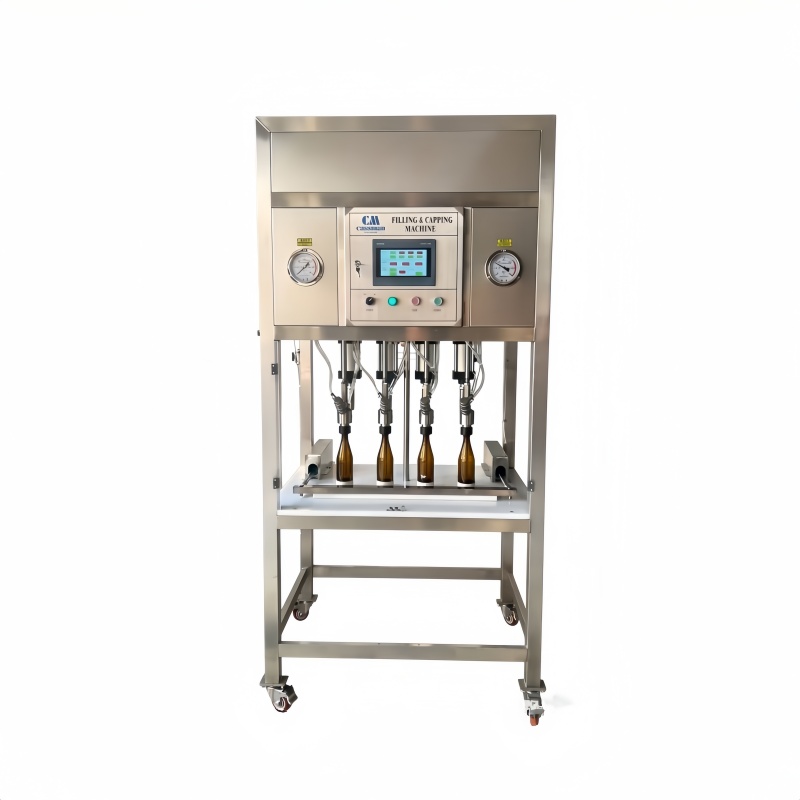

4-4 Beer bottle filling and capping machine | |
Equipment Outer Dimensions | 1720*830*2200mm |
Net Weight | 245Kg |
Production Capacity | 100-200 bottles/H |
Applicable Bottles | 330ml-1L bottles |
Working Stations | 4 |
Power Supply Voltage | AC 220V 50HZ (customized) |
6-6 Beer bottle filling and capping machine | |
Equipment Outer Dimensions | 2150*830*2200mm |
Net Weight | 285Kg |
Production Capacity | 200-300 bottles/H |
Applicable Bottles | 330ml-1L bottles |
Working Stations | 6 |
Power Supply Voltage | AC 220V 50HZ (customized) |
8-8 Beer bottle filling and capping machine | |
Equipment Outer Dimensions | 2950*830*2200mm |
Net Weight | 335Kg |
Production Capacity | 300-400 bottles/H |
Applicable Bottles | 330ml-1L bottles |
Working Stations | 8 |
Power Supply Voltage | AC 220V 50HZ (customized) |
10-10 Beer bottle filling and capping machine | |
Equipment Outer Dimensions | 3500*830*2200mm |
Net Weight | 375Kg |
Production Capacity | 400-600 bottles/H |
Applicable Bottles | 330ml-1L bottles |
Working Stations | 10 |
Power Supply Voltage | AC 220V 50HZ (customized) |
