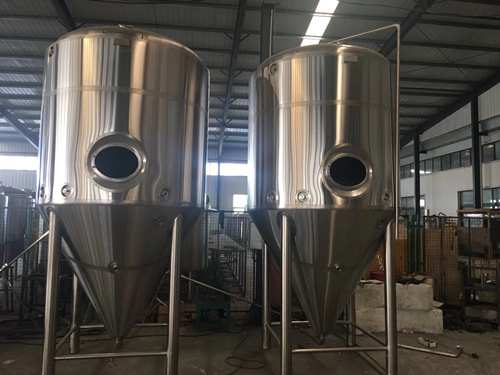

40bbl Stainles Steel Fermenter for Craft Brewery

Product Details • 40bbl Net capacity, 25% head space • Diameter 1800mm*Height 3800mm. • SUS 304 material insulated tank. • 100% TIG welding with pure argon gas. • 0.3 Mpa test pressure. 0.2 Mpa working pressure. • Dimple cooling jacket, side and cone of the tank. NPT connection. • Top relief valve(PVRV), Top dry hopping port. • Sanitary side manway (top for option). • Sample valve. Pressure valve, Co2 relief valve, DIN/TC racking arm. • 60 degree cone.carbonation stone, • Level tube, CIP pipe, Blow Off pipe, • 24V solenoid valve.Dial Thermometer. RTD sensor. • Stainless steel 304 butterfly valve.(DIN, Tri-clamp) • Lifting Lugs,Adjustable Feet,Ladder Hooks.
