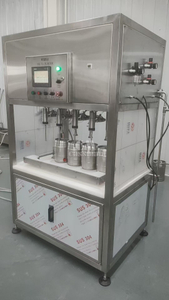

12-1 type fully automatic canning machine
This 12-1 type fully automatic canning machine is special designed for medium capacity brewery/brew pubs. It’s easy operating with high efficiency. The working flow includes CO2 purge, filling and then sealing the caps. All-in-one filling method design, the working is reliable.
Model | CM12-1 |
Filling nozzle | 12 |
Sealing nozzle | 1 |
1500-2000 CPH | |
Maximum filling pressure | 0.3Mpa |
Filling temperature | <4°C |
Compressed Air consumption | 0.1m3/min(0.4~0.6Mpa) |
CO2 consumption | 160g/100L |
Can neck | Φ52~Φ90mm |
Can height | 105~240mm |
