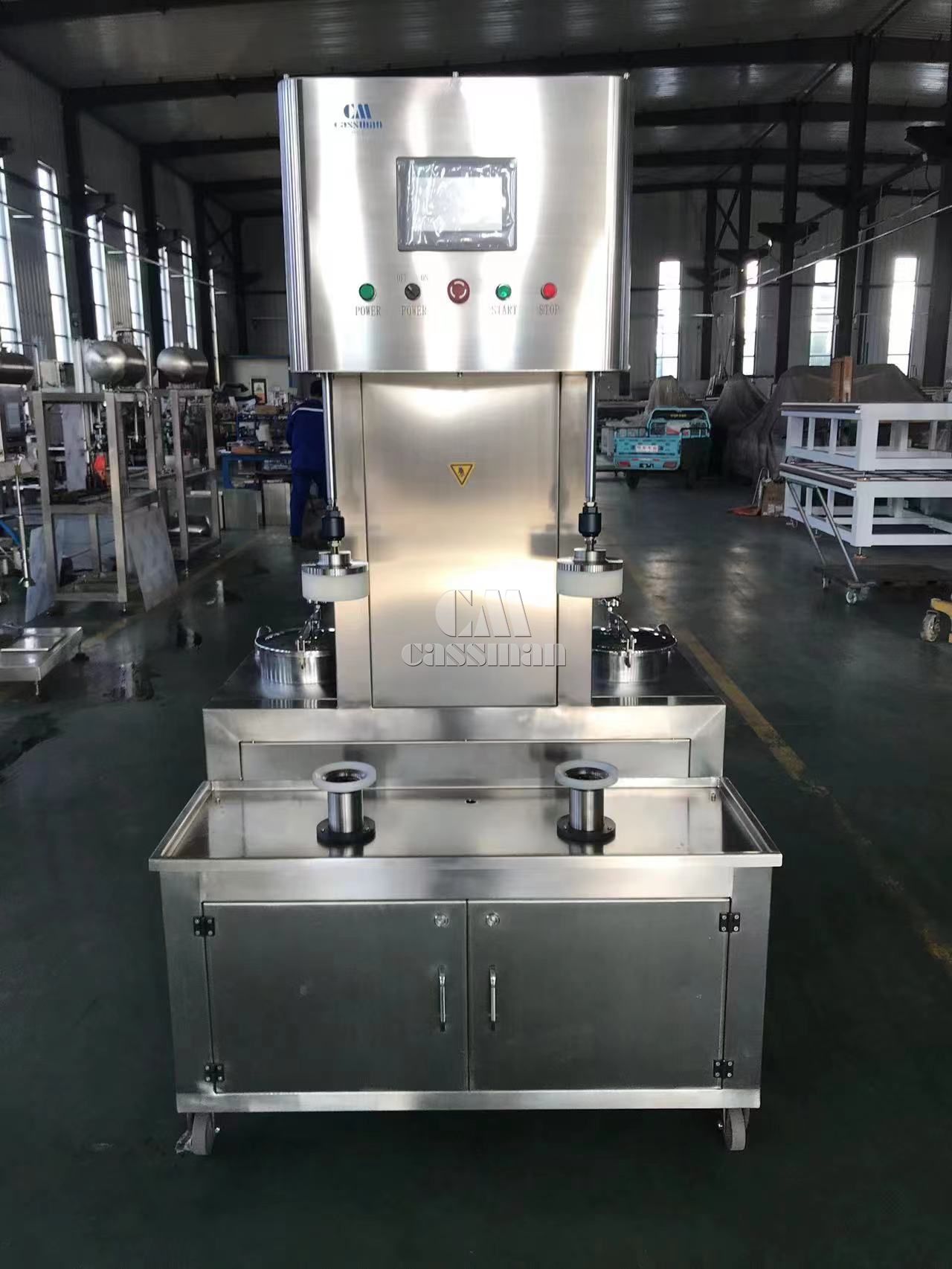

Cassman Keg Washing Machine
1. The control unit of our beer keg washer adopts the German Siemens programmable controller for the whole process of automatic control, one-button operation, automatically completes all tasks such as cleaning, disinfection and CO2 pressure preparation.
2. Our beer keg washer is equipped with an automatic residual liquid inspection device. If there is any residue in the barrel, it will automatically extend the residual liquid discharge time. A large amount of residue), this device can eliminate the above situation.
3. With anti-washing function of wine spear.
4. The keg washing machine keg washer comes with three water tanks (clean water, alkaline water, disinfection water). The alkaline liquid, disinfectant, and sterile water can be recycled to save water.
5. Using air-controlled angle seat valve, safe and reliable operation
Working table size | 1200mm×450mm |
Working table height | 750mm |
Machine dimensions | 1310mm×1550mm×1970mm |
Cylinder maximum stroke | 300mm |
Net weight | 228Kg |
Power | 3KW |
Production capacity | 80~100 barrels/hour |
Cleaning method | Cleaning upside down |
Working procedures
Drum compaction - draining residual liquid-hot water cleaning - gas flushing (discharging water) - hot alkaline water cleaning - gas flushing (alkaline water circulation) - hot water cleaning - gas flushing (water discharging) - acid cleaning - gas flushing （Acid circulation) - hot water cleaning-gas flushing (exhaust) - steam evacuation, sterilization - sterile water cleaning - CO2 gas flushing (oxygen exhaust from barrel) - CO2 filling pressure—stop (taking barrel)
