Specifications:
Item | Parameter |
Size of platform | 1000*1800*2000 |
Worktable height(mm) | 750mm |
Capacity | 40-70keg per hour |
Air consumption | 8 - 22.5m3/hour |
Water consumption | 1 - 3 m3/hour |
Washing style | Inverted washing |
Kegs’ size（mm） | Diameter:ф250-500 mm Height:400-660 mm |
Piston maximum stroke(mm) | 300 |
Pressure of air | 0.6-0.8 Mpa |
Pressure of the cylinder | 0.4-0.5 Mpa |
Pressure of CO2 | 0.2-0.3 Mpa |
Pressure of steam | 0.15-0.2Mpa |
Hot alkaline water temperature | 40-80℃ |
Hot water temperature | 40-80℃ |

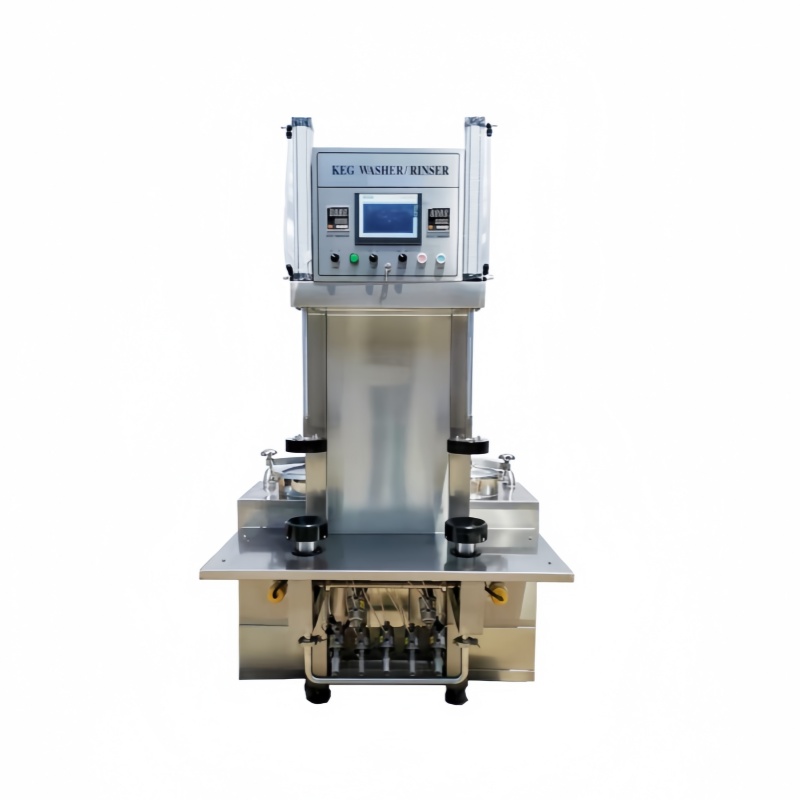

Built with industrial-grade durability, the Cassman Semi-Automatic Keg Washer guarantees perfect purity in every pour. Its inverted cleaning design and comprehensive multi-stage cycle ensure a sterile, oxygen-free environment, making it the ideal solution for breweries prioritizing quality and efficiency.
High Capacity: Processes 50 kegs per hour to keep up with your production demands.
Gravity-Assisted Cleaning: Inverted design ensures complete draining of cleaning agents for spotless results.
Heavy-Duty Build: 224kg net weight and 3KW motor for long-lasting performance.
Complete Cycle: Includes rinsing, washing, sanitizing, and CO2 purging.
Capacity: 50 kegs/hour
Dimensions: 1310mm (L) × 1550mm (W) × 2050mm (H)
Table Size: 1145mm × 515mm
Net Weight: 224 Kg
Power: 3 KW
Cleaning Mode: Inverted (Upside Down)
Power Supply: AC 380V / 50Hz / 3-Phase
Air Pressure: 0.6 ~ 0.8 Mpa
Steam Pressure: 0.2 Mpa
CO2 Pressure: 0.4 ~ 0.6 Mpa
Specifications:
Item | Parameter |
Size of platform | 1000*1800*2000 |
Worktable height(mm) | 750mm |
Capacity | 40-70keg per hour |
Air consumption | 8 - 22.5m3/hour |
Water consumption | 1 - 3 m3/hour |
Washing style | Inverted washing |
Kegs’ size（mm） | Diameter:ф250-500 mm Height:400-660 mm |
Piston maximum stroke(mm) | 300 |
Pressure of air | 0.6-0.8 Mpa |
Pressure of the cylinder | 0.4-0.5 Mpa |
Pressure of CO2 | 0.2-0.3 Mpa |
Pressure of steam | 0.15-0.2Mpa |
Hot alkaline water temperature | 40-80℃ |
Hot water temperature | 40-80℃ |
Built with industrial-grade durability, the Cassman Semi-Automatic Keg Washer guarantees perfect purity in every pour. Its inverted cleaning design and comprehensive multi-stage cycle ensure a sterile, oxygen-free environment, making it the ideal solution for breweries prioritizing quality and efficiency.
High Capacity: Processes 50 kegs per hour to keep up with your production demands.
Gravity-Assisted Cleaning: Inverted design ensures complete draining of cleaning agents for spotless results.
Heavy-Duty Build: 224kg net weight and 3KW motor for long-lasting performance.
Complete Cycle: Includes rinsing, washing, sanitizing, and CO2 purging.
Capacity: 50 kegs/hour
Dimensions: 1310mm (L) × 1550mm (W) × 2050mm (H)
Table Size: 1145mm × 515mm
Net Weight: 224 Kg
Power: 3 KW
Cleaning Mode: Inverted (Upside Down)
Power Supply: AC 380V / 50Hz / 3-Phase
Air Pressure: 0.6 ~ 0.8 Mpa
Steam Pressure: 0.2 Mpa
CO2 Pressure: 0.4 ~ 0.6 Mpa
